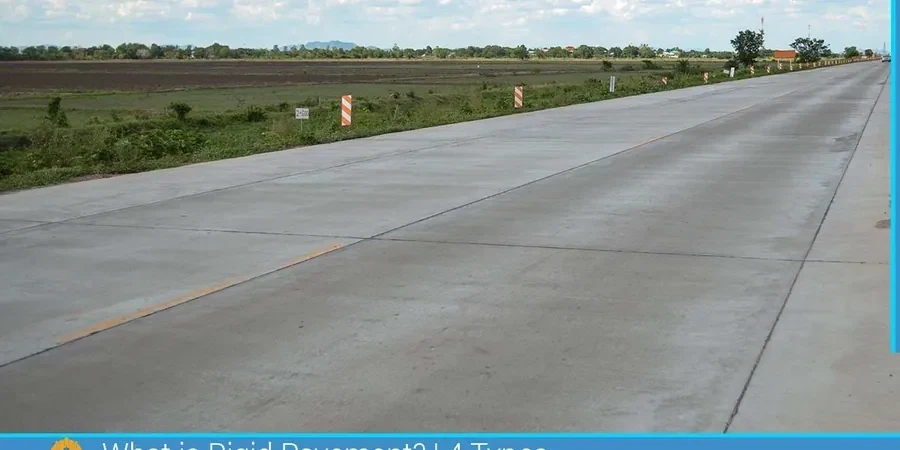

Rigid Pavement Design in Newcastle: Stiff Pavements for Industrial and Urban Loads

Over 300,000 people live in the Newcastle upon Tyne area, and the city's industrial legacy means the ground underfoot rarely matches the clean assumptions of a design spreadsheet. Rigid pavement design here must account for weathered Coal Measures, pockets of boulder clay, and made ground from the city's shipbuilding and mining past. A poorly supported concrete slab on glacial till or colliery backfill develops uncontrolled cracking within the first freeze-thaw cycle. The technical team approaches every rigid pavement design by mapping the subgrade reaction modulus (k-value) from In-Situ before selecting slab thickness and joint spacing. On the Quayside and along the Tyne corridor, variable fill depths over bedrock demand a design that bridges differential settlement without losing load transfer at the contraction joints. The design integrates the CBR road subgrade assessment when the pavement section transitions from rigid to flexible at access ramps and yard perimeters.

A rigid pavement slab is only as good as its subgrade support—in Newcastle's glacial till, the k-value measured on site decides the design, not the textbook table.

Scope of work in Newcastle

Newcastle's climate is a hard test for concrete pavements: 660 mm of annual rainfall, frequent freeze-thaw cycles in winter, and saturated clay subgrades from October through March. Rigid pavement design in this region starts with the subgrade: a stiff, well-drained formation layer is non-negotiable. The team specifies granular sub-base thickness based on the California Bearing Ratio measured at formation level, then selects slab thickness using Westergaard's edge-loading equations calibrated to the axle loads expected on site. For container terminals and distribution centres along the A1 corridor, the design typically includes dowelled contraction joints at 5.0 m spacing and tied longitudinal joints for lane widths up to 4.5 m. Steel fibre reinforcement can replace conventional mesh in slabs subject to point loads from container corner castings or heavy forklift traffic. The concrete mix design is adjusted for sulfate resistance where the underlying glacial till contains weathered pyritic material—a common condition in former mining areas of the North East. Joint sealing uses hot-poured bitumen to prevent water ingress and subgrade softening beneath the slab edges.

Rigid Pavement Design in Newcastle: Stiff Pavements for Industrial and Urban Loads

Parameter	Typical value
Design standard	BS EN 13877-2 and Eurocode 2 (BS EN 1992-1-1)
Subgrade assessment	Plate bearing test to BS 1377-9 for modulus of subgrade reaction (k)
CBR requirement	Minimum 5% at formation; lime stabilisation if <3%
Slab thickness range	180 mm (car parks) to 350 mm (container yards with reach stackers)
Joint spacing	Contraction joints at 24x slab thickness; typically 4.5–5.5 m
Concrete strength class	C32/40 minimum; C40/50 for heavy abrasion and studded tyres
Load transfer	Round dowel bars Ø25 mm at 300 mm centres on transverse joints

Procedure video

Critical ground factors in Newcastle

BS EN 1997-1 (Eurocode 7) requires that the ground be treated as a construction material, not just a passive support. In Newcastle, ignoring the spatial variability of the glacial till subgrade is the most common cause of rigid pavement failure. A slab designed for a uniform k-value of 50 MPa/m will crack if the actual subgrade varies between 20 and 80 MPa/m across the panel footprint. The team mitigates this by specifying a minimum of one plate bearing test per 500 m² of formation, with additional tests where the till transitions to made ground or coal outcrop. Pumping at joints is another local hazard: fine-grained subgrade soils erode under repeated wheel loads if the joint sealant fails and water penetrates. The design response is a well-graded, free-draining sub-base (Type 1 to SHW Clause 803) and a positive crossfall of 2.5% to shed surface water. Where the pavement crosses a former mining area, the design includes a geogrid-reinforced sub-base to span potential crown holes that could develop from collapse of shallow mine workings.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards: BS EN 13877-2:2013 – Concrete pavements: functional requirements, Eurocode 2 (BS EN 1992-1-1:2004) – Design of concrete structures, HD 26/06 (DMRB 7.2) – Pavement design for new roads, BS 8500-1:2015 – Concrete specification for sulfate ground conditions

Our services

Rigid pavement design in Newcastle spans from light-duty car parks to heavy industrial yards. The two core service packages cover the range of applications seen in the region.

Industrial Yard and Container Terminal Pavements

Design of jointed unreinforced and steel-fibre-reinforced concrete slabs for reach stacker loads up to 100 tonnes. Includes subgrade assessment, Westergaard analysis for corner and edge loading, and joint detailing for heavy-duty traffic.

Concrete Carriageway and Bus Lane Design

Rigid pavement design to DMRB HD 26/06 for bus priority corridors, industrial estate access roads, and signalised junctions. Includes tied longitudinal joints, dowelled contraction joints, and transition slabs at flexible pavement interfaces.

Q&A

How much does a rigid pavement design cost for a typical industrial yard in Newcastle?

For a standard industrial yard or container storage area in the Newcastle area, the design fee ranges from £1,590 to £5,580 depending on the yard size, number of plate bearing tests required, and whether the project involves former mining land requiring additional ground investigation interpretation.

What subgrade conditions in Newcastle create the most problems for concrete pavements?

Glacial till is the dominant subgrade across Newcastle and its variability is the main challenge. The till contains lenses of sand, silt, and stiff clay, and the undrained shear strength can shift from 75 kPa to over 200 kPa across a single panel. Made ground from the city's mining and industrial past adds another layer of uncertainty. We map this variability with plate bearing tests and dynamic cone penetrometer soundings before finalising the slab design.

Do you design the joint layout and reinforcement for rigid pavements?

Yes, the design package includes a full joint layout plan showing contraction joint spacing, longitudinal joint positions, isolation joints at fixed structures, and the dowel bar schedule. For steel-fibre-reinforced slabs, the fibre dosage and type are specified based on the required residual flexural strength. We also produce the concrete mix specification addressing sulfate class, minimum cement content, and maximum water-cement ratio for the exposure conditions on site.
