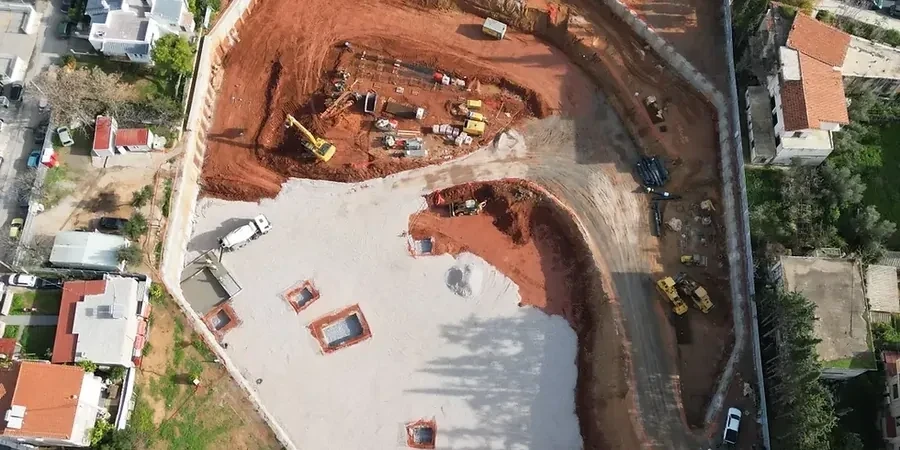

We have seen it more than once in Newcastle: a contractor opens a cut for a basement or a shaft, follows a standard support scheme, and within days the ground moves behind the wall. The problem is rarely the construction sequence itself; it is the assumption that the ground will behave like it does further south. Newcastle’s geology packs a succession of glacial till, laminated clays, and coal-measure rocks into a single excavation profile, and groundwater perched in sand lenses can switch the failure mechanism from base heave to piping within hours. A deep excavation here cannot be designed from a textbook table. It demands a solid site investigation strategy right from the concept stage, so the ground model captures every water-bearing horizon before the first shovel breaks ground.
In Newcastle’s glacial sequence, the real design challenge is not ultimate limit state but serviceability—keeping wall movements below 0.2 % of excavation depth to protect adjacent masonry.
Scope of work in Newcastle
Critical ground factors in Newcastle
One observation we make again and again across Newcastle is that groundwater levels measured during a 24-hour borehole standpipe test rarely match the pressures that build up during a 12-week excavation. The laminated clays act as aquitards, trapping perched water in silt partings that bleed slowly into the cut face. If the designer assumes a hydrostatic profile from a single reading, the wall may be under-designed for the true pore-pressure distribution. We address this by specifying multi-level vibrating-wire piezometers and reading them through at least two tidal cycles on the Tyne, because the river level can shift the groundwater baseline by over a metre in the quayside reach. Where the excavation approaches listed structures—and Newcastle has plenty—we also run a building damage assessment using the Burland scale, so the client knows beforehand which cracks are acceptable and which trigger a contingency slot.
Our services
Our Newcastle-based geotechnical design team delivers the full chain from ground investigation specification through to temporary works design and Category 3 checks. Each package is signed off by a chartered engineer with direct experience of the region’s glacial and coal-measure geology.
Embedded retaining wall design
Full ULS and SLS design of secant pile, sheet pile, diaphragm, and king post walls for basements, shafts, and cut-and-cover tunnels. We use beam-spring models for preliminary sizing and 2D/3D finite-element analysis for the final design, capturing staged excavation, dewatering, and prop pre-load effects.
Ground movement and building damage assessment
Prediction of settlement troughs behind the wall using the empirical methods of Clough & O'Rourke and numerical back-analysis. We map every structure within the zone of influence onto the Burland damage classification, so the contractor and the client have a transparent, defensible baseline before works begin.
Q&A
What is the typical design fee for a deep excavation in Newcastle?
For a single-phase excavation design with 2D analysis and a ground model based on existing borehole data, fees in Newcastle typically fall between £1,430 and £7,240. The spread depends on excavation depth, number of support levels, whether 3D modelling is required, and the complexity of the groundwater control system. A 6 m basement in glacial till with one prop level sits at the lower end; a 14 m quayside shaft with tidal influence, multiple wall types, and a building damage assessment moves toward the upper end.
How do you account for the Coal Measures when designing an excavation in Newcastle?
The Coal Measures beneath Newcastle are not a uniform rock mass. They are a cyclic sequence of sandstone, siltstone, mudstone, and occasional coal seams, with bedding dips that can exceed 15 degrees north of the Tyne. We model the rock as a transversely isotropic material where bedding controls stiffness and strength anisotropy. Joint orientation is measured from oriented core or borehole televiewer logs, and we check wedge sliding on the exposed face using kinematic analysis before sizing any rock socket or toe embedment.
What is the observational method and do you apply it in Newcastle?
The observational method, as described in Eurocode 7, is a design approach where the construction sequence and support measures can be modified during the works based on monitored performance. In Newcastle, we frequently recommend it for excavations adjacent to sensitive structures. We define trigger values for wall deflection, groundwater pressure, and surface settlement ahead of time, and we prepare contingency measures—such as additional props or re-tensionable anchors—that can be deployed without stopping the job if a trigger is reached. This keeps the primary design economical while managing residual risk transparently.
