In Newcastle, our geotechnical laboratory category covers the physical and index testing required to classify soils derived from the region’s complex glacial till, alluvium, and weathered Coal Measures. Accurate characterisation is essential for complying with BS 1377 and Eurocode 7 standards, with basic classification often starting through precise Atterberg limits testing to define plasticity and liquidity. These index properties directly inform foundation design and earthworks specifications across the variable ground conditions found from the Tyne Valley to the coastal plain.
This testing supports a wide spectrum of local projects, from structural foundation assessments to major infrastructure and slope stability analysis. Detailed grain size analysis by sieve and hydrometer is fundamental for evaluating drainage potential, frost susceptibility, and material reuse, particularly in the granular fluvial deposits common beneath the city. Our laboratory category provides the reliable data essential for robust geotechnical interpretation and value engineering.
In Newcastle’s Coal Measures, a well-designed anchor gains its capacity from the rock mass beyond the weathered zone—short bond lengths in fractured mudstone are the most common cause of proof-test failure.
Scope of work in Newcastle
Critical ground factors in Newcastle
The North East climate brings sustained rainfall and freeze-thaw cycles that accelerate weathering of exposed anchor head details; water ingress behind waling plates can initiate corrosion even in double-protected systems if the head seal is poorly executed. A bigger risk in Newcastle stems from uncharted mine entries and bell pits that collapse progressively, deloading or snapping tendons grouted into the affected zone. The Coal Authority’s mining reports flag recorded workings, but historical shallow pillar-and-stall extraction often went unrecorded, leaving voids that a standard site investigation may miss. Where passive anchors are specified for a cantilever or propped wall in glacial till, the design must allow for softening of the till at the excavation face during wet winter construction, because undrained shear strength can drop by thirty percent within a few days of exposure. We address this by specifying sacrificial facing protection and by sequencing anchor installation with excavation monitoring that tracks load development in real time, triggering re-stressing if relaxation exceeds the project threshold.
Our services
Our Newcastle anchor design package covers the full lifecycle from feasibility through to long-term monitoring, recognising that each site on the Coal Measures presents a unique combination of rockhead geometry, groundwater chemistry, and access constraints.
Geotechnical characterisation for anchor design
Cored boreholes with RQD logging, pressuremeter testing in weak rock, and laboratory sulphate and pH determination on soil and groundwater samples to define the corrosion environment per BS 8081.
Anchor capacity and layout design
Calculation of tendon size, bond length, and free length using limit equilibrium and numerical methods. Design of anchor spacing and inclination to avoid interaction with services, basements, and mine workings.
Suitability and acceptance testing
On-site supervision of test anchors to BS EN 1537, including incremental loading and unloading cycles, residual load verification, and interpretation of creep rates for permanent anchors in sandstone.
Accurate laboratory testing forms the backbone of every reliable ground investigation in the Newcastle region, underpinned by the complex glacial and post-glacial geology of the Tyne Valley. Our testing programme is designed to characterise the full range of local soils, from the stiff glacial tills of the Team Valley to the alluvial sands and soft silty clays along the Quayside. We provide a comprehensive suite of index, classification, and strength tests strictly in accordance with UK standards, ensuring compliance with the recommendations of BS 5930 and the Specification for Ground Investigation, second edition. This data is critical for deriving safe and efficient design parameters, directly feeding into our foundations design recommendations and broader geotechnical investigation reports.

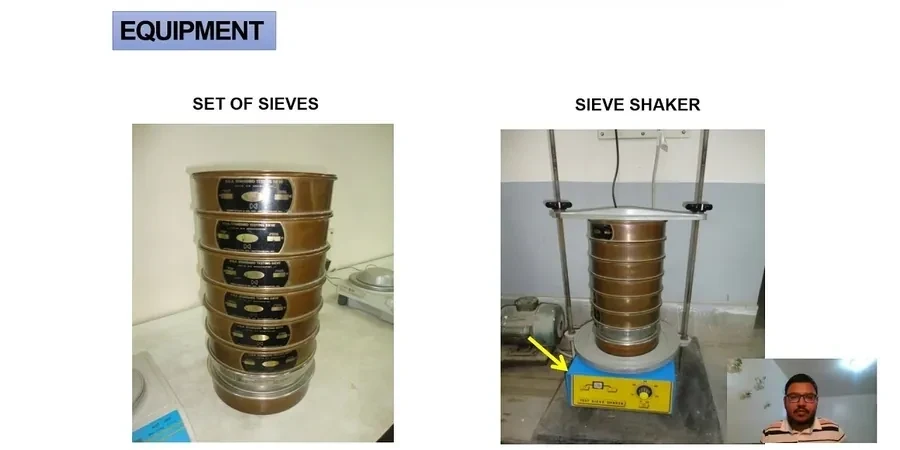

Our analytical methodology is rigorously aligned with the current UK standards, primarily BS 1377 (Methods of test for soils for civil engineering purposes) and BS EN ISO 17892 for geotechnical laboratory testing. This ensures every result is traceable and defensible. The process begins with detailed logging and sample selection, followed by moisture content determination and index testing, including Atterberg limits to define the plasticity characteristics of fine-grained soils. A fundamental component of any programme is the grain size analysis, utilising both sieve and hydrometer methods to produce a full particle size distribution curve. These classification tests are essential for correlating with our Cone Penetration Test (CPT) data and results from other In-Situ methods, creating a robust ground model.

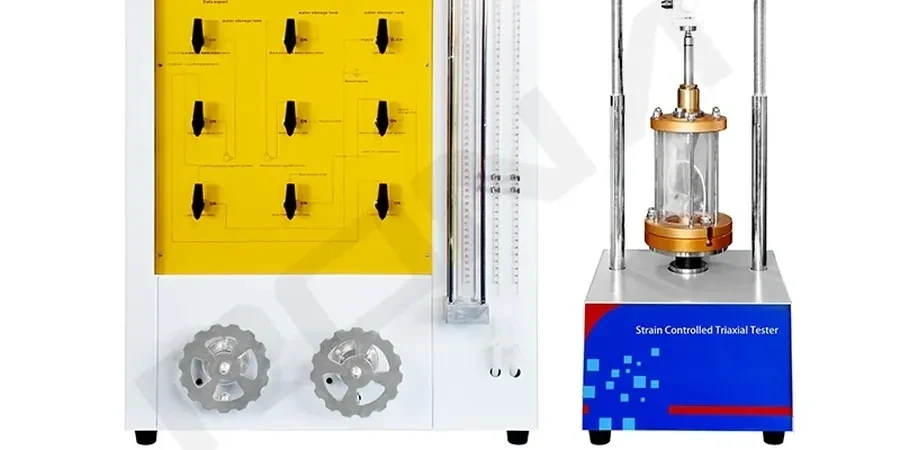

In Newcastle, the laboratory data we generate is directly applied to a wide range of local projects, each demanding a specific testing regime. For a city centre student accommodation block founded on buried river channel deposits, effective shear strength parameters from triaxial compression tests are vital. Conversely, for a residential development in Gosforth on lodgement till, the emphasis often shifts to long-term consolidation characteristics, measured through oedometer tests, to assess settlement potential. Infrastructure projects, such as the upgrade of the A1, rely heavily on our California Bearing Ratio (CBR) values for pavement design. The interpretation of these results is often validated against field measurements, such as those from a field density test using the sand cone method, to ensure the compacted fill meets the specification derived from laboratory compaction curves.
Our process delivers a clear, actionable outcome. On completion of the scheduled tests, you receive a factual report containing all raw data sheets, graphical plots, and photographic records. This is followed by an interpretative geotechnical report that evaluates the results, discusses any anomalies, and provides characteristic values for design. The core value proposition is certainty: by investing in a thorough and meticulously executed laboratory testing programme, you de-risk the ground, optimise foundation design, and gain the confidence to proceed with construction, knowing the ground conditions beneath your Newcastle site are no longer an unknown variable.
